Extrusion coating and laminating lines

Refining complexity into productivity.

SML’s high-performance extrusion coating lines are the right answer, tailored to the hugely diverse requirements that pertain to coating products. Our high-speed extrusion coating and laminating lines set the standard in industries, maintaining flexibility for frequent product changes.

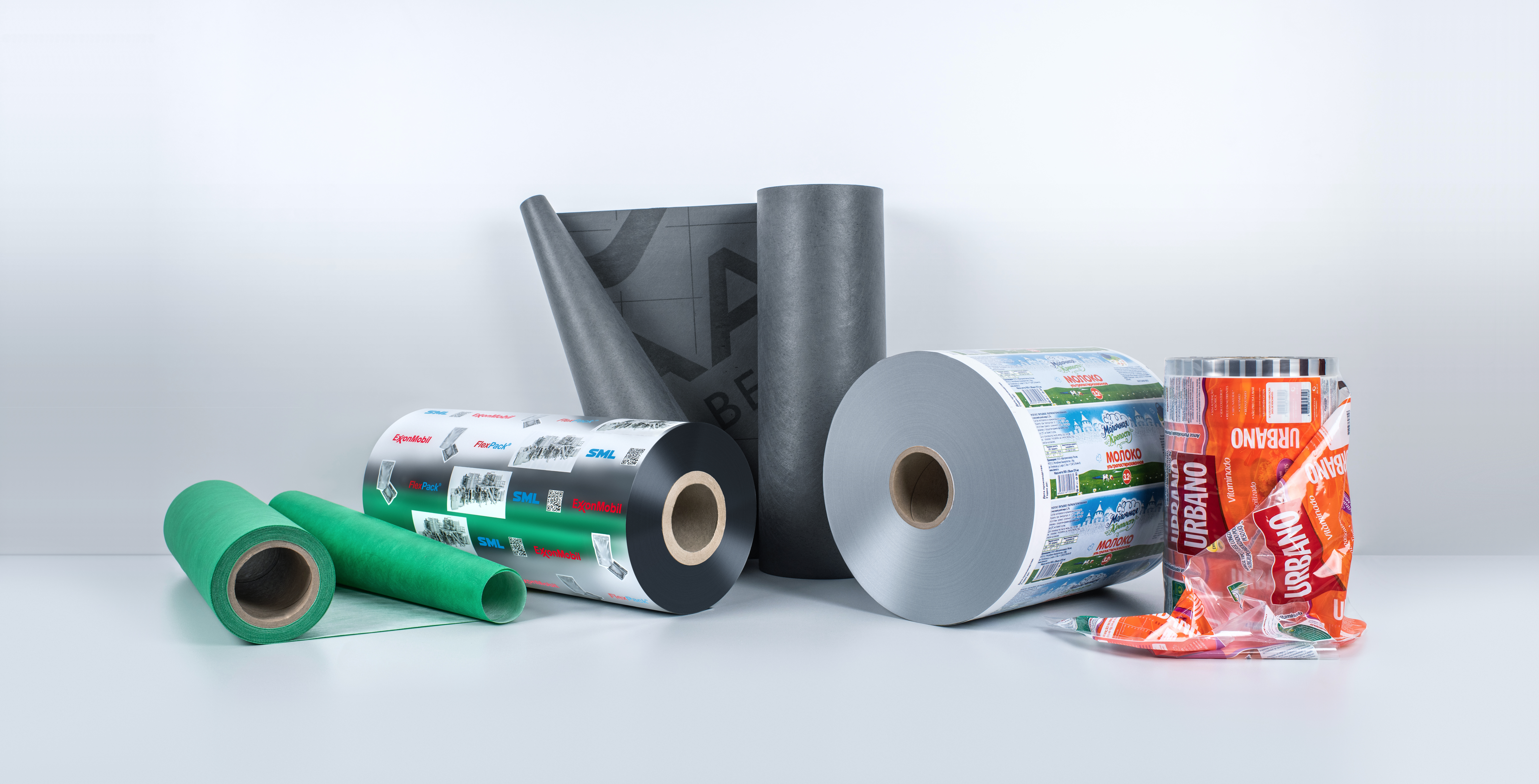

Typical end users include the manufacturers of flexible packaging for the food industry. Manufacturers of films and laminates for hygiene applications, the construction industry and textile and carpet makers are others in this category who rely on the extrusion coating process. No matter how your preferences look, SML always has the ideal solution for your final product.



Our systems’ benefits are clear.

  •  Different winding and unwinding concepts with shafts and shaftless
  •  High-performance extruders specially tailored to your applications
  •  Co-extrusion for multi-layer and complex structures
  •  Optional Tandem or Triplex line design
  •  Components fully integrated in the line control system
  •  Smile Control System – an intuitive, simple-to-use human-machine interface

Line Types

The benchmark for flexibility in production.

The SML FlexPack®



FlexPack® is a well-proven SML concept which raises the bar for flexibility and simplicity in coating and lamination. It has been specifically engineered for the dynamic packaging market, but found its place also for technical applications. All options are on the table for customers thanks to the line’s compact and modular design.



The system guarantees a thoroughly safe, cost-effective and user-friendly production while delivering extraordinary product quality. Its modular design means that the line can be custom-engineered for your specific needs, even making it possible to create highly complex lines with relative ease based on our modular construction system.



Technical data
Products flexible packaging, hygiene and technical applications
Product width FlexPack® 1500 700 - 1,350mm
Product width FlexPack® 1800 800 - 1,650mm
Coating weight 9 - 50 g/sqm (depending on product)
Coating layers 3-layer (optional 5-layer)
Maximal operating speed 350 m/min winding shafts
Maximal operating speed - shaftless 450 m/min
FlexPack extrusion coating and laminating line



Simply unbeatable in action.



The SML FlexPack®

  •  Demands minimised floor space
  •  Modular design for flexible applications
  •  Allows for quick and simple product changes
  •  Simple to use and to control
  •  Best in class for productivity and profitability





SML DoubleCoat

New horizons for breathable products.

DoubleCoat

Coating layer thickness reduced to an absolute minimum, very high water columns and sensational values for breathability: It even allows materials combinations which where considered to be incompatible so far.



DoubleCoat is SML’s new patented, sequential coating method for the manufacture of breathable products - i.e. in the field of sanitary articles, for the construction industry or for disposable clothing.






Combine the options and gain the edge.

The SML triplex lines for aseptic packaging

Packaging for beverages extracted from natural food sources such as fruit juice present a particular challenge in the engineering of systems and processes. SML’s lines can be used to manufacture complex composite carton packaging in one simple and cost-effective process.

The centrally controlled 'Smile Control System' plays a key role in this, allowing you to manage the activities simply and conveniently.



Technical data
Products Aseptic board packaging
Product width 700 - 1,650mm
Lamination weight 15 - 25 g/sqm
Inside weight 20 - 40 g/sqm
Decor weight 12 - 25 g/sqm
Total product weight 150 - 400 g/sqm
Maximal operating speed 400 m/min



Refining complexity into simplicity.

That is what SML is all about. And that is where the benefits accrue to you.





Robust solutions to make production simple.

The SML coating and laminating lines for tubular or flat-woven fabric



Drawing on our extensive knowledge, we have been highly effective at establishing ourselves in the extrusion coating market for a variety of fabric types. In addition to their impressive ease of use, our lines are well-known for their robust design, which is intended for the rough ambient conditions on the shop floor within this industry.


Typical applications include truck tarpaulin, durable bags and big bags, greenhouse film, sealing membranes, to name just a few. Even when things get tough, SML lines boast robustness and reliability.

Technical data
Substrates woven fabrics
Maximal flat product width 2,200mm
Maximal tubular product width 2,200mm single-sided coating
750mm double-sided coating
Coating weight 15 - 80 g/sqm
Maximal operating speed 150 m/min

Tailor-made for your standards.



SML provides tailor-made solutions for its coating and laminating lines for tabular or flat woven fabric. Among others, we are offering extrusion carriage with inline refeeding systems for edge trims, making these extrusion lines highly efficient.



Our up-to-date winding systems are handling both tabular and flat woven fabrics at an outstanding quality. As an option, we are providing an oscillating function for the handling of small double side coated tabular fabrics used for bags.





Custom solutions to maximise productivity.

The SML coating and laminating lines for large product widths



We supply tailor-made solutions for extremely wide products up to 5,300mm largely used for technical purposes, always with focus on customers requirements.

After all, that is the only way to lay the foundation for efficient and economical production in these scenarios.

Technical data
Substrates woven fabric, paper, nonwovens, grids etc.
Products tarpaulins, steel wrap, roofing membranes, carpets etc.
Product width up to 5,300mm
Coating weight 15 - 80 g/sqm or 80 - 600 g/sqm
Extrusion layers mono or co-extrusion
Maximal operating speed 250 m/min
SML drum winder for heavy textiles and cardbord

Thanks to the custom solutions we have already crafted on many occasions, we are respected as an expert partner in the field that can provide the ideal, reliable machinery to give our customers the edge in production. We would be delighted to take on your challenge in this area, as well – do not hesitate to get in touch!
